When installing the plugin for the first time, the merchant needs to go through the Configuration section of the plugin. This section instructs the merchant to configure the plugin before putting it into use in the ecommerce site.
1. Select country
- Select the country from which your packages are shipped.
- Click ‘Continue’ to go to next screen.

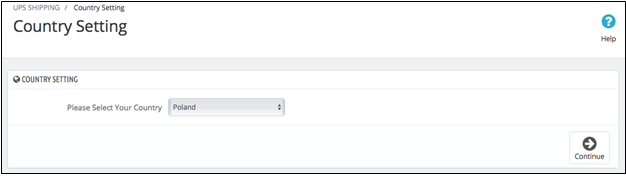

Figure 5 - Country setting
2. Accepting Terms & Conditions
- User need to read through the UPS terms and conditions and the plugin usage agreement, then confirm that the user agreed to them. The user cannot proceed to the next steps if not agree to these terms, conditions.
- Click ‘Continue’ to go to next screen.

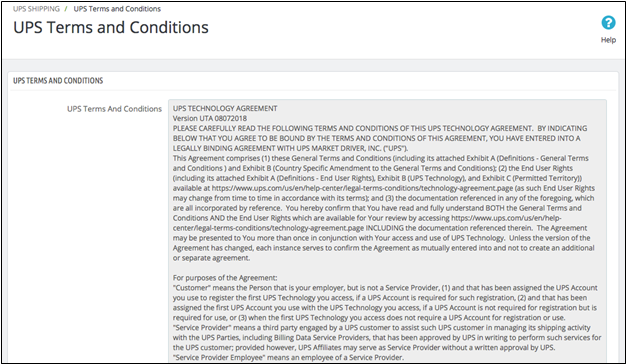

Figure 6 – UPS Terms and Conditions

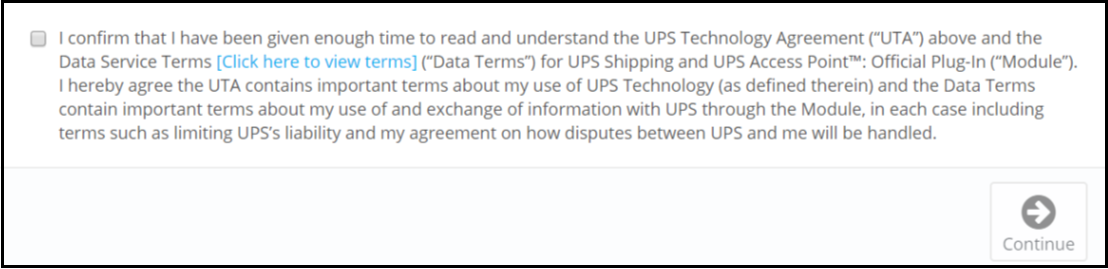

Figure 7 – User’s consent request
3. Account
- NOTE: If you have an existing UPS account number, while registering yourself on the Account page, please use the exact registered pickup address (which might be different from your invoice billing address) associated with this account number. Please note that the format of the postal code or zip code should exactly match the one provided in the registered pickup address. If you have any difficulties understanding which address to use, please contact your local UPS sales representative or open a support ticket.
- This screen allow merchants to configure their account to use UPS Shipping service. The merchant need to fill out the required personal information to start using the plugin as instructed in the screen.
- After filling the personal information, user selects one of three options that best describes them and fill the required information:
- User has a UPS account with an invoice occurred in the last 90 days.
- User has a UPS account without an invoice occurred in the last 90 days.
- Use do not have a UPS account.
i. Merchants who had UPS Account and have invoices with UPS occurred in less than 90 days

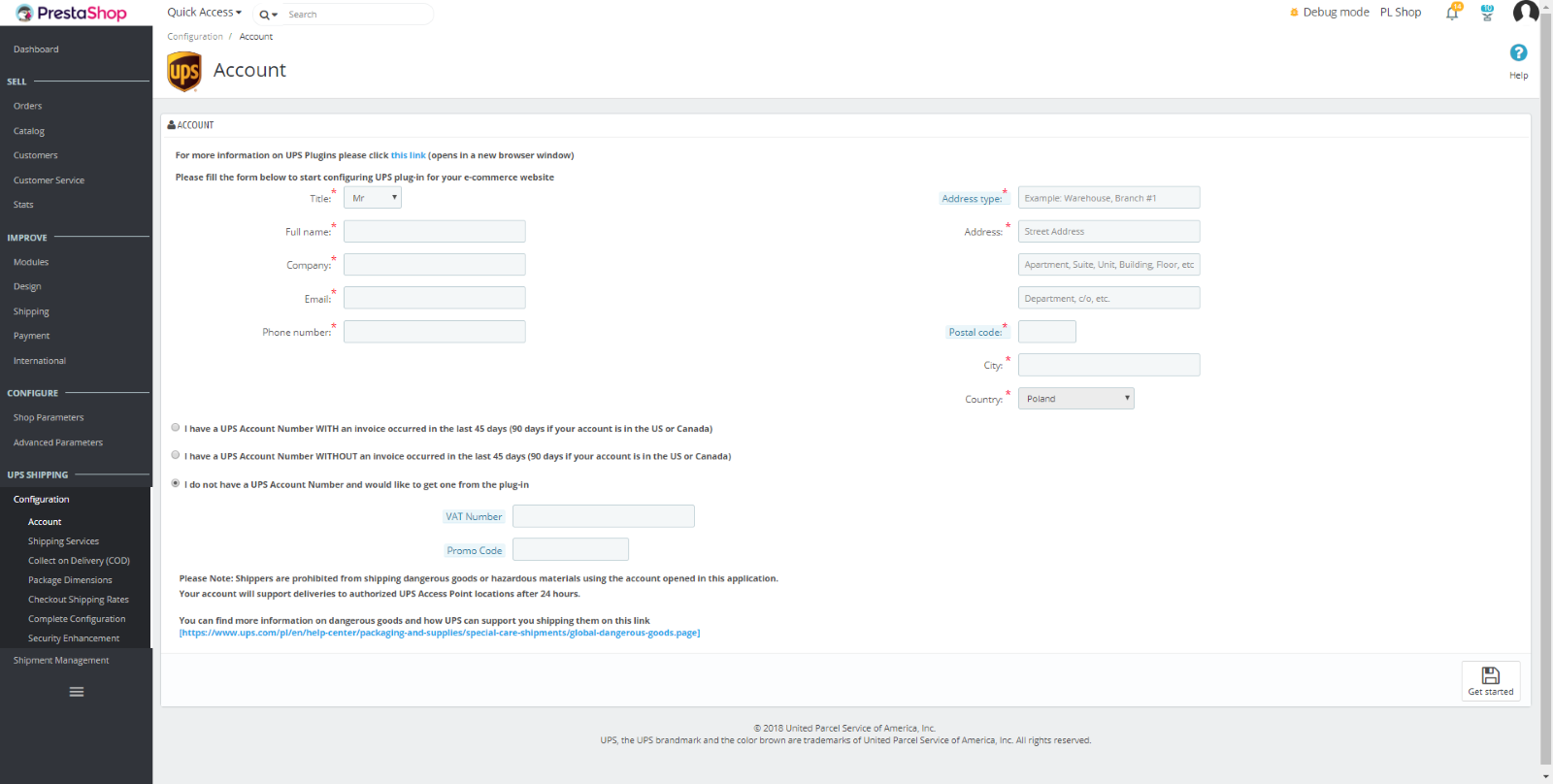

Figure 8 - User's Account information

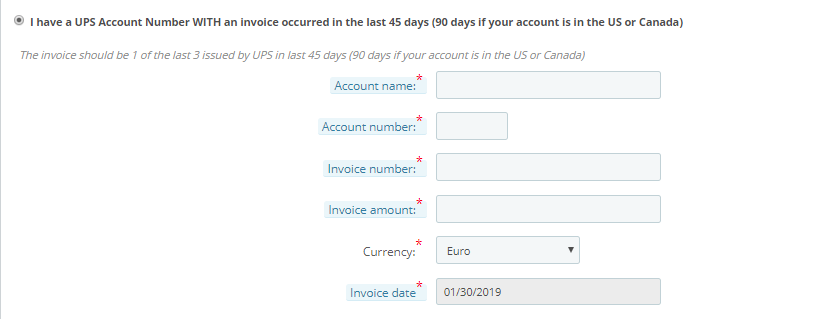

Figure 9 - User has UPS Account with invoice in the last 90 days
ii. Merchant who had UPS account number but do not have invoices in less than 90 days

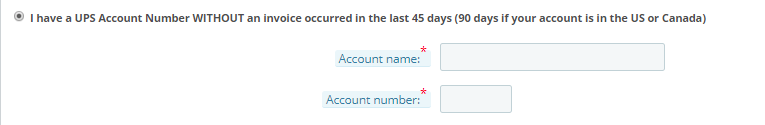

Figure 10 - User has Account number without invoice in the last 90 days
- Any incorrect information will result in incorrect configuration. All information has to be entered correctly by the merchant to activate the plugin. If merchant is unsure, they can open a support ticket for information prior to activation.
iii. Merchant who doesn’t have a UPS Account Number and would like to get one from the plug-in
Note: U.S. merchants automatically receive promotional rates when opening a new account in the plug-in, and the promo code box will not be visible to them

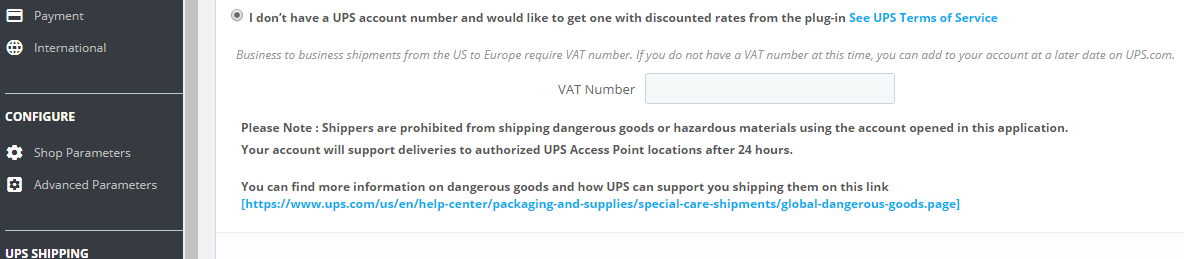

Figure 12 - I don’t have a UPS account number and would like to get one with discounted rates from the plug-in
- Any incorrect information will result in incorrect configuration. All information has to be entered correctly by the merchant to activate the plugin. If merchant is unsure, they can contact the UPS help desk for information prior to activation.
4. Shipping Services
- Various shipping services information, which are available for the particular area would be displayed here. Merchant can select which one is suitable for his e-shoppers.
- This shipping service list is automatically loaded from UPS database, depending on the country that the user chose in the first screen.
- Saturday delivery (as a selectable option) is only available for users in Europe. If selected, the service is shown in the checkout screen when the delivery address postal code and UPS pick up postal code and date/time is eligible for Saturday delivery

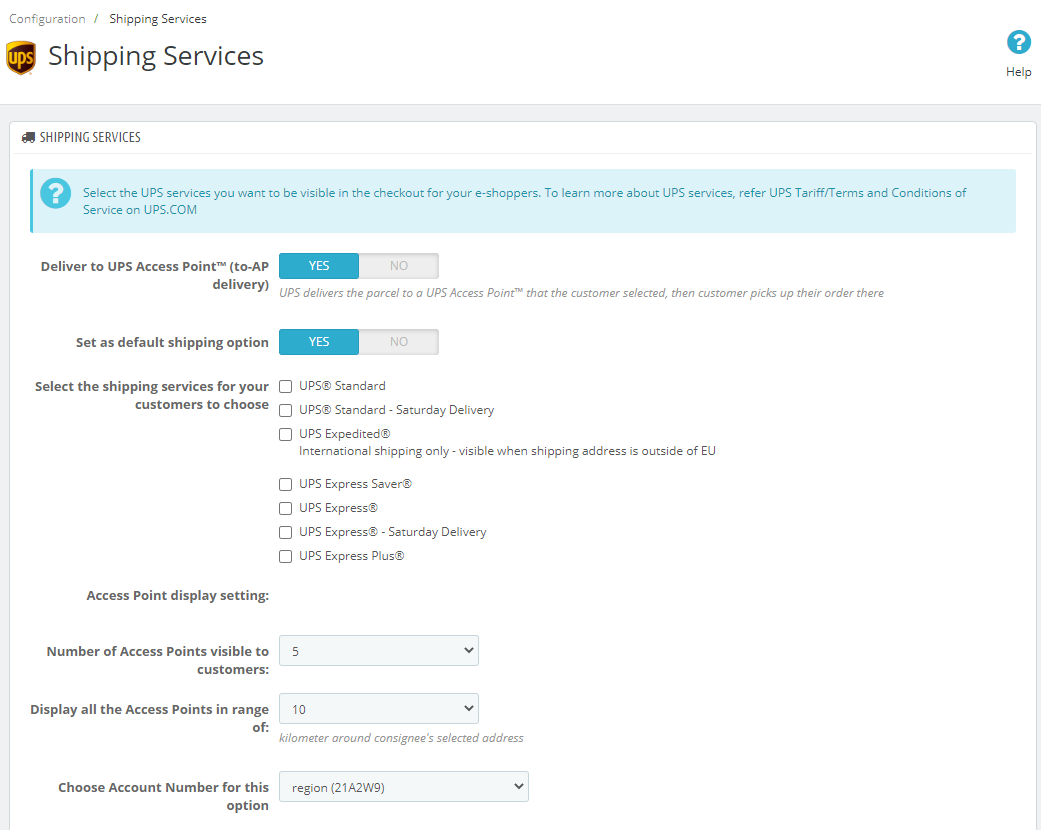

Figure 11 - Shipping Services Configuration
5. Collect on Delivery (COD)
- UPS Shipping Plugin automatically detect whether user’s Prestashop website installed the COD module, and display that status in the ‘COD Option’ section.
- If user wishes to use COD service, he could go to Prestashop’s market place to install the COD module by Prestashop and activate that module.
- If user wishes to disable COD service in UPS Shipping Plugin, he could deactivate the COD module of Prestashop. UPS Shipping Plugin will automatically update accordingly.
- Click ‘Next’ to go to the next screen.
Figure 12 – Cash on Delivery Configuration
6. Package Dimensions
- The user can decide if they want rates calculated and displayed based on:
- Basic – (The number of items in the order determines package size) – This option is best when you sell a single product type and the size of the package for shipping only changes based on the number of products in the customer’s order
- Enter at least one default package size for 1 item in the order
- Enter additional default package sizes based on the number of the items in the order that force a larger average package size
- The package size entered for the highest number of items in the order will apply for all orders equal to or greater than that number of items
- In the example below, an order of 1-2 items will rate based on a 12 x 12 x 12 package at 3 lbs, an order of 3-4 items will rate based on a 20 x 20 x 12 package at 6 lbs and every order with 5 or more items will rate based on a 24 x 24 x 24 package at 10 lbs
- Basic – (The number of items in the order determines package size) – This option is best when you sell a single product type and the size of the package for shipping only changes based on the number of products in the customer’s order

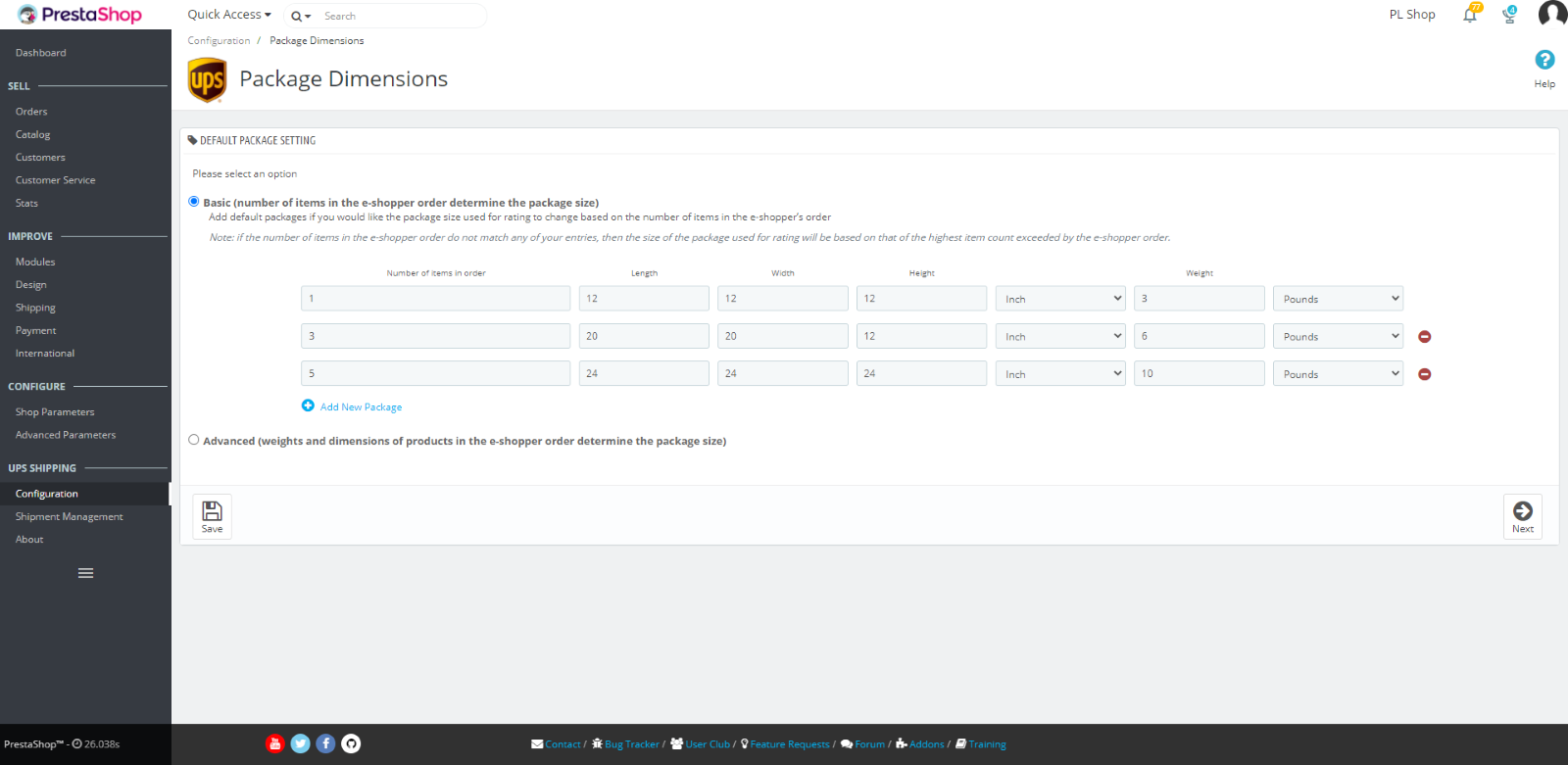

Figure 13 – Package Dimensions Configuration – Default package weight and dimensions
-
- Advanced – (Weights and dimensions of products in your customers order, determine the package size) – This option is best when you sell different products ranging in size and weights and the size of package changes based on which and how many products are in the customer’s order
- To use this option, you must enter product weights in the product settings of your shop.
- If you DO NOT enter product dimensions for each product in your product settings and wish to show rates based on order weight only, the select “No” for “Include product dimensions in rating”
- If you DO enter product dimensions for each product in your product settings and want more accurate rates with dimensions considered, the select “Yes” for “Include product dimensions in rating”
- Enter the sizes of the packages you use to fulfill orders. Note, the plugin will create a custom package size if your customer order is larger than the packages you enter
- Enter at least 1 “Back up” rate and service. This will ensure the consumer receives a rate if there’s a rating error cause by products missing weights, weights being greater than UPS limits, incorrect units of measure, etc.
- Note, units of weight must be entered in kilograms and centimeters. Entering ounces or grams will result in an error and the “Back up” rate showing
- In the example below, the user has entered 3 package sizes for their orders, elected to include product dimensions in rating and will show “Back up” rate of $15.55 for UPS Ground to the consumer if there is a rating error
- Advanced – (Weights and dimensions of products in your customers order, determine the package size) – This option is best when you sell different products ranging in size and weights and the size of package changes based on which and how many products are in the customer’s order

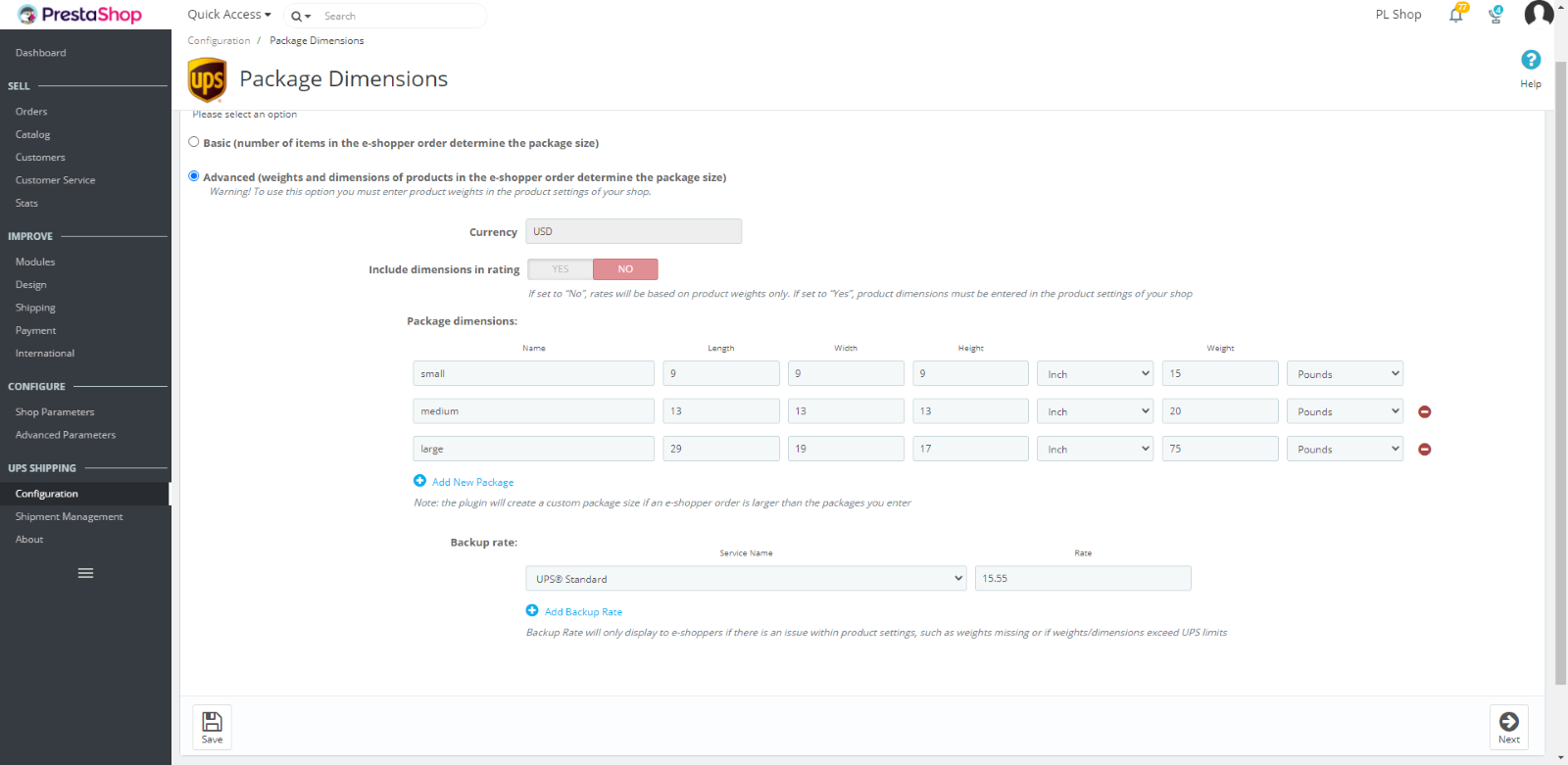

Figure 14 – Package Dimensions Configuration – Product dimensions for rating
- Click ‘Next’ to go to the next screen.
7. Checkout Shipping Rate
- User can define the delivery rates offered for the e-shoppers here.
- The shipping services that user selected in the Shipping Service screen will be automatically loaded to this screen.
- User can configure the rates for each shipping service separately. Each shipping service can be configured with two rating options:
- Flat rates: all the order will be categorized base on order value. If that value is smaller than a defined Order Value Threshold, the corresponding Delivery Rates will be applied. The order with the value higher than the highest Order Value Threshold will enjoy free shipping (Delivery Rate = 0).
- Example: an user configure the delivery rates for UPS Standard with following rules:
- Order Value Threshold: $50 | Delivery rate: $5: all the order with value under $50 will be charged $5 for delivery.Order Value Threshold: $100 | Delivery rate: $3: all the order with value higher than $50 but under $100 will be charged $3 for delivery.
- Example: an user configure the delivery rates for UPS Standard with following rules:
- Flat rates: all the order will be categorized base on order value. If that value is smaller than a defined Order Value Threshold, the corresponding Delivery Rates will be applied. The order with the value higher than the highest Order Value Threshold will enjoy free shipping (Delivery Rate = 0).
The applied delivery rates are illustrated in the chart below:
Figure 15 – Delivery Rate Example
-
- Real time shipping rates: the delivery rates are calculated based on shipping rates quoted by UPS. User can configure to charge e-shoppers any percentage of that quotation.
- Click to ‘Save’ to save the delivery rates configuration.
- Click to ‘Next’ to go to the next screen.

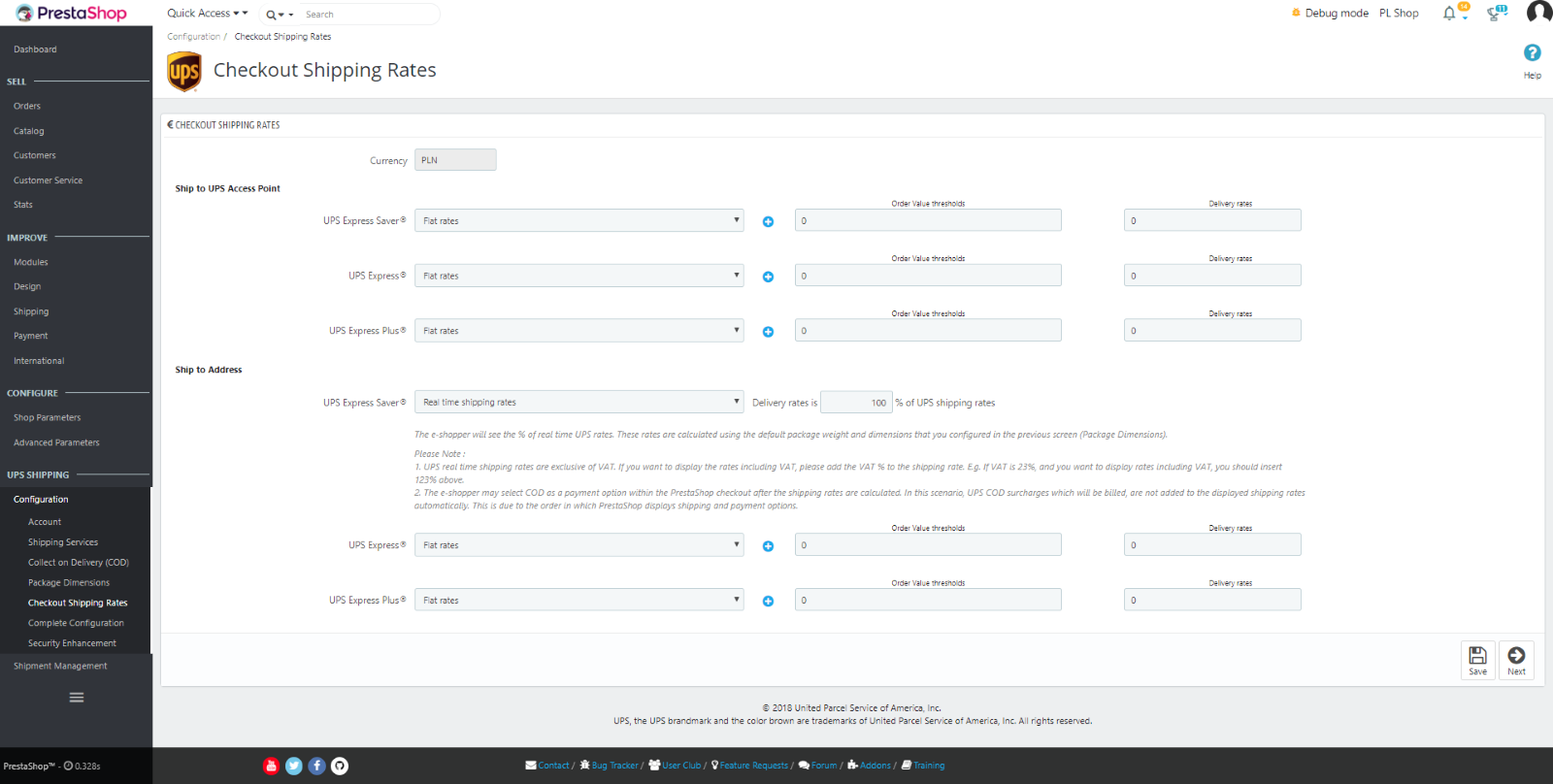

Figure 16 – Delivery Rate Configurations

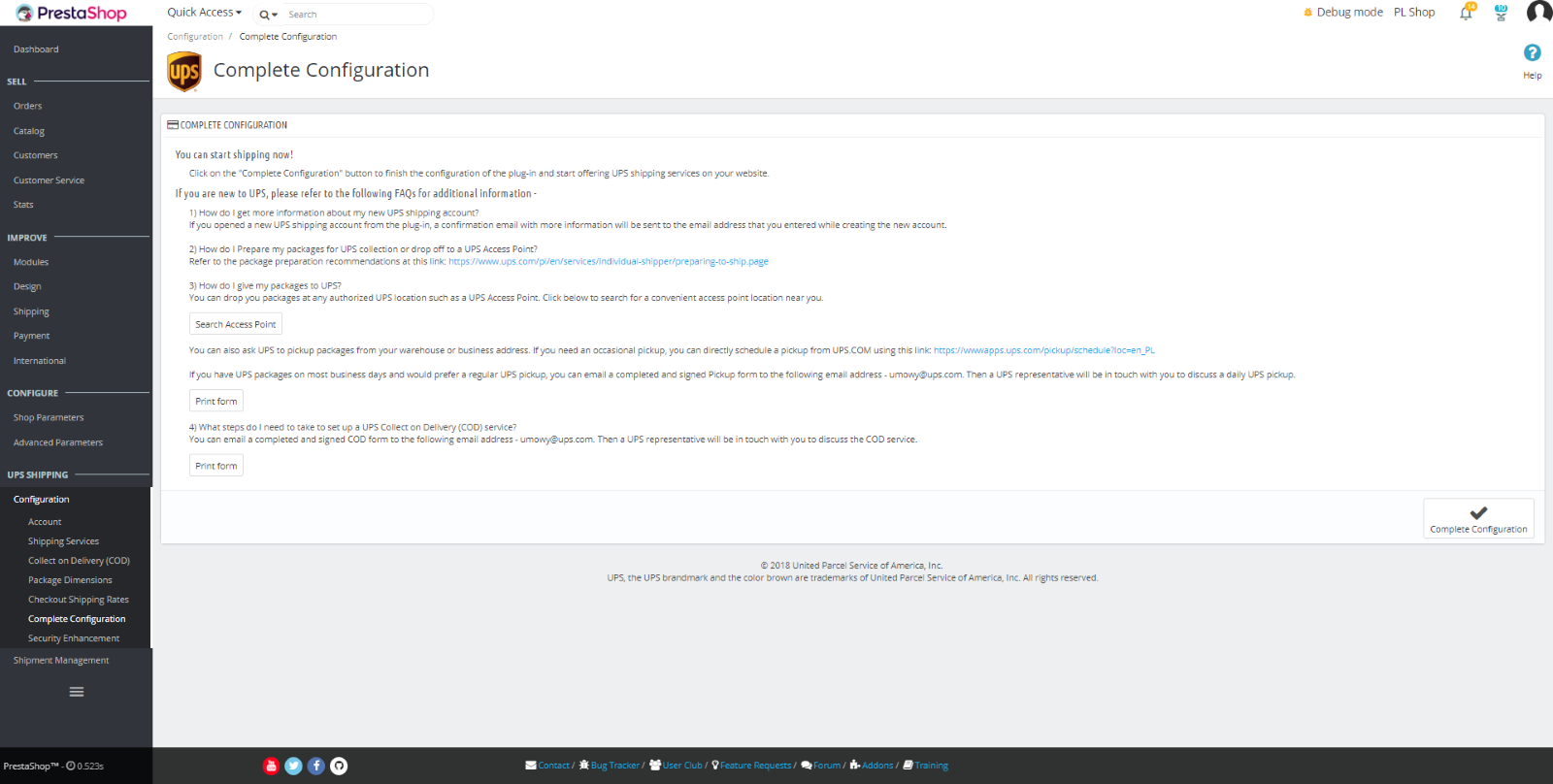

8. Complete Configuration
- This screen shows additional guidance for user to experience UPS’s services.
- User can also search for UPS Access Point and print COD and Pickup Registration form.
- Click ‘Complete Configuration’ to complete the configuration step.
Figure 17 – Billing Preferences

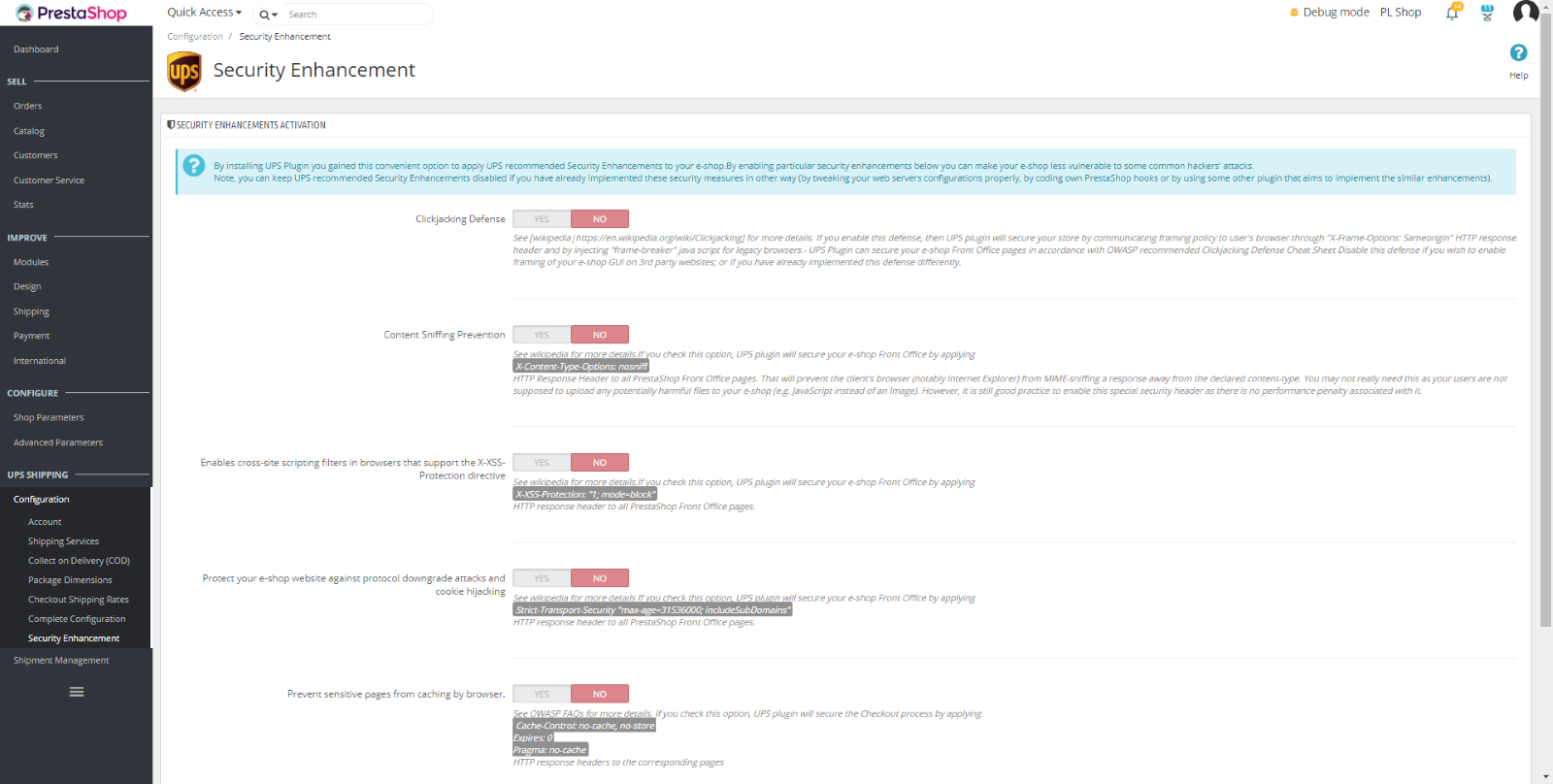

9. Security Enhancement
